Compact, Lightweight and Maneuverable

SR-115

Contact Us Learn More
  • Single Package Design
  • Extremely Powerful For Its Size
  • Highly Agile for Portability

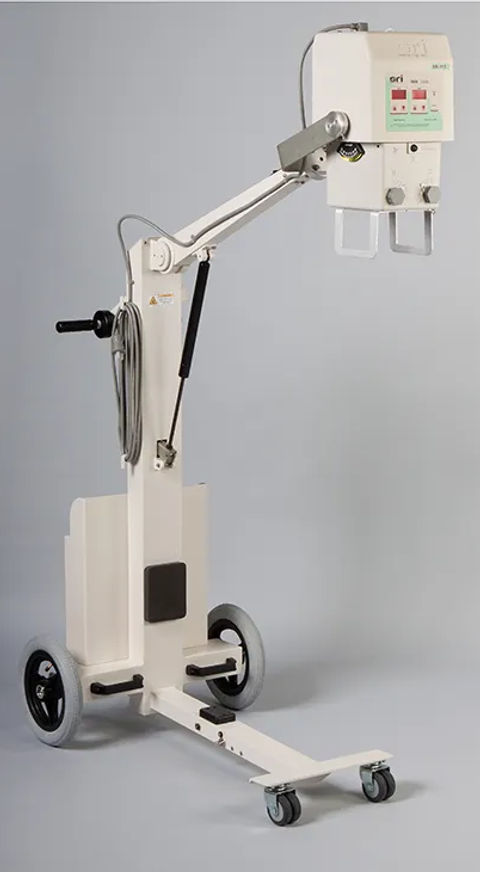

SR-115 Portable X-ray System

It provides the maximum power obtainable from a line-powered portable for its size. Expect high system reliability and low maintenance with this lightweight unit, all in a small footprint. The SR-115 is ideal for imaging in small rooms or areas with limited access.

Designed With Agility in Mind For Portable X-ray Applications

Light Weight 80 lbs / 36 kg

kVp Range 40-100Vp

mAs Range 0.15 - 60

Controls Integrated

Key Advantages

  • Our most lightweight Portable X-ray System
  • Simple To Use Integrated controls
  • Durable & Compact Design
Learn About Other Key Advantages

Specifications

Radiographic Applications
  • Designed with agility in mind for portable x-ray applications.
Generator Type
  • High frequency Resonant Inverter Microprocessor controlled.
kVp Range
  • Extremity Range - Adjustable in 1 kVp steps.
mA Range
  • 15 Fixed. Constant mA, Independent of kV or time.
mAs Range
  • Optimum Range. Provides quality soft tissue
  • & bone resolution.
Product Compliance
  • Certified to FDA 21 CFR Subchapter J.
X-ray Tube
  • Stationary anode, 15° Target, 1.0 fs 25,000 Heat Unit Storage. Provides superior image quality & heat storage.
Collimator
  • 200° Rotation – High output LED lamp, Laser Indicators.
Exposure Switch
  • 2 Position, Prep / X-ray, 15’ cable.
Mechanical Stand
  • Welded Aluminum construction
SR-115 Portable X-ray System
